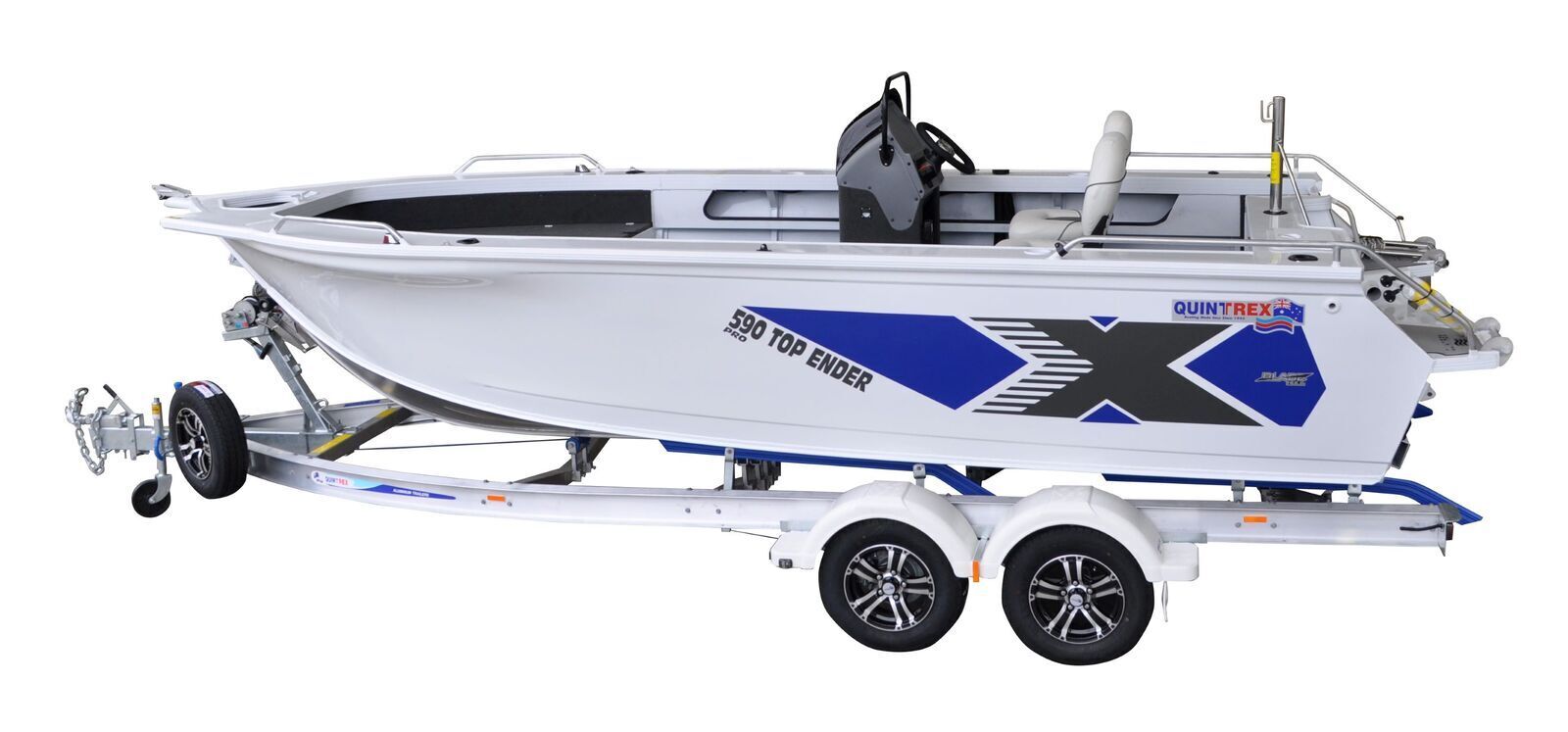

Quintrex 590 Top Ender Pro with
Move Trailers Aluminium 2000 ATM Tandem Axle 13" Skid Mech Braked Trailer &
Mercury Marine 150HP FourStroke Outboard

Kit Inclusions: Boat, Trailer, & Motor

Quintrex 590 Top Ender Pro SC - Side Console XLS

Originally invented for the "top end", the Top Ender range is a popular fishing favourite Australia-wide. The Top Ender's barra-bass tournament style layout, deep sides, plus the Blade Hull and Flared Bow combination, make the range perfect for traversing remote creeks, estuaries and open bays. If you like sport angling, this is the boat for you.

The biggest in the Top Ender range, this sports fishing boat is built for the chase. The Side Console configuration and large front casting platform, along with expansive feature configuration, delivers unrivalled fishing potential.

Boat Features:

  • Casting Platform Raised
  • Helm: Side Console & Hydraulic Tilt Steering
  • Cockpit Lights (2)
  • Drink Holder Cups
  • Glove Box
  • Live Bait Tank
  • Marine Radio
  • Pole Mount Insert
  • Rear Ladder
  • Rod Holders (4)
  • Scuppers
  • Ski Pole
  • Underfloor Storage
  • Anchorwell
  • Bow Mount Thruster Plate
  • Cleat On Front Deck
  • Side Decks Extruded
  • Side Pockets
  • Transducer Brackets x 2
  • Welded Gunnels and Top Decks
  • Painted Hull
  • Rail: Transom Grabrail
  • Rails
  • Rails: Console Grabrail
  • Rails: Side
  • Seat Positions (4)
  • Seats: Bass Sport
  • Seats: Pedestal
  • Helm: Hydraulic Tilt Steering

Boat Options:

  • Quintrex Fish Bag 100cm
  • Quintrex Fish Bag 150cm
  • Covers: Bimini & Envelope
  • Covers: Bimini & Envelope NT
  • Covers: Bimini Extension - Large
  • Covers: Bimini Extension - Small
  • Casting Platform & Storage Bin
  • Aerial on deck
  • Deck Wash
  • Drum Winch
  • Fusion Stereo & Speakers
  • Rod Holders (2)
  • Savwinch 1000SS
  • Savwinch Electronic Free Fall
  • Seat Spiggot
  • Ski Hooks
  • Twin Battery Box & Switch
  • Deluxe Rod Locker
  • Unpainted Gunnel
  • Painted Two Tone
  • Seat Pedestal
  • Seat: Lean
  • Seats: Lean Seat
  • Transom Door
  • Vinyl Wrap

Move Trailers Aluminium 2000 ATM Tandem Axle 13" Skid Mechanical Braked Trailer - TA2000T13SB
Suitable for 5.7m - 6.1m Boats

You want a strong trailer supporting your pride and joy and this aluminium frame offers the best with a swing jockey wheel as standard and multi-roller set-up for easy retrievals.

Trailer Features:

  • 13 Inch Alloy Wheels
  • 13 Inch Tyres
  • 4 Alloy Cross Members
  • 50mm Braked Coupling (2 Tonne)
  • 7-Pin Plug
  • Adjustable Dual Keel Rollers
  • Adjustable Single Keel Rollers
  • Adjustable Long Skids
  • 45mm Square Axle
  • Clearance Lights
  • Disc Brakes
  • Draw Bar
  • Easy Loader Cradle
  • Forward-Facing White Light
  • Swing-Up Jockey Wheel
  • LED Lights
  • Rolled Frame Alloy I-Beam
  • 10.5:1 Winch

Trailer Options

  • Spare Wheel & Carrier
  • 13" Trailer Spare Wheel Cover
  • Trailer Tie-Down Point
  • Trailer Walkway

Mercury Marine 150HP FourStroke Outboard - Electric Start Extra Long Shaft
Available in Black or Cold Fusion White

FourStroke
Make every minute count. Every spot, every tow, every cast. With innovative technologies, simple maintenance and efficient performance, Mercury fourstroke outboards were engineered to elevate every moment on the water.

The entire fourstroke outboard family features efficient, lightweight designs that ensure no power goes wasted. It is worry-free boating that is easy to own and fun to drive. With features ranging from a no-spill oil change system and easy-access fuel filter, to a valve train that remains maintenance-free for the life of your engine, Mercury fourstroke outboards are easy to maintain for lasting peak performance.

It is simple. You have places to go, and a Mercury fourstroke outboard is the easiest way to get there. Their high-displacement powerheads deliver impressive torque, speed and acceleration - with reliability you can count on. It is everything you need to get more out of your time on the water.

Embrace Possibility.
Mercury FourStroke outboard motors are incredibly powerful and efficient, and they feature a wide range of applications. Crafted for less weight and high displacement, they generate abundant torque and immediate power. And because they don’t have to work as hard as heavier engines or those with lower displacement, they make boats plane faster and accelerate better, and they provide optimal fuel efficiency at cruising speed.

FourStroke Advantages:

  1. Corrosion Resistance: Advanced alloys. Durable coatings. Sealed electronics. Easy-to-use freshwater flush system. Fourstroke outboards come packed with premium corrosion-preventive technology that enables them to stand up to the most demanding marine environments.
  2. Superior Control: With a choice of tiller or remote steering and compatibility with advanced SmartCraft® features such as Troll Control and Active Trim, you can optimise your engine for total command of all your adventures.
  3. Go Farther: A host of efficiency-enhancing features such as Advanced Range Optimisation (ARO), a closed-loop fuel system and a hydrodynamic gearcase optimise fuel economy so you can go farther on every tank.
  4. Power and Flexibility: A Mercury 250 or 300hp fourstroke outboard is the answer for fishing, cruising or all-around fun. They are ideal for powering a range of boats and come in four colour options to match your boat and style.

Features:

  • High-output alternator: A powerful alternator - 60 amps on the 150hp outboard and 35 amps on 75 to 115hp outboards – helps keep batteries charged and your onboard electronics running all day.
  • Extra charging power: Idle charge battery-management technology on the 150hp engine automatically increases idle rpm to boost alternator output and recharge low batteries.
  • Command Thrust gearcase: Available for the 90 and 115hp outboards, the Command Thrust gearcase is designed to turn larger props. It helps get heavy boats on plane more easily and hold them there at lower speeds without impacting the top speed.
  • Tiller handle: With a range of adjustments and ergonomic controls, the available advanced tiller for 90 to 115hp models or Big Tiller for the 150hp engine puts you in complete command of your adventures.
  • Electronic Fuel Injection (EFI): From the moment you crank the engine to the moment you drop the throttle, EFI technology responds with instant power. Surefire starting in all weather conditions. Smooth, efficient acceleration. Maximum capability.

Quintrex is the fishing boat of choice for Australians. Whether you are hunting snapper, barramundi, flathead, or chasing marlin offshore, our Quintrex range has a layout and length that will suit you.

Boat Specifications:

Length Maximum 6.19m
Beam 2.3
Max HP 150hp
People Max 6
Boat Weight 685kg
Transom Shaft Length XLS
Top Sides 3mm
Bottom Sides 4mm
Transom Material 4mm

Trailer Specifications:

Product TypeTrailer
Boat Size5.7m - 6.1m
Tare Weight440kg
Aggregate Trailer Mass2000kg
Tyre165
Gross Trailer Mass2000kg
Width Between Guards1.8m
Springs6
Length Overall6.93m
Width Overall2.28m
Wheel13"
Trailer BrakesOverride

Motor Specifications:

Horse power150
Shaft Length (Inches)25
Cylinders / Displacement4 cyl / 3000cc
Steering (Tiller or Remote)Remote
Starting (Manual / Electric)Electric
Fuel Tank-
Standard (STD) Recommended PropellerEnertia
Alternator amp / watt17 amp / 210 Watts
ColourBlack / Cold Fusion White
Compatible with SmartCraft digital technologyYes
Displacement (L)3.0L
Dry weight *lightest model available455 lbs / 206 kg
Engine type8-valve single overhead cam (SOHC)
HP / kW150 / 110
Recommended fuelRegular Unleaded (91 RON)

SKU KIT134-590-2000-1150F23ED
Brand Quintrex
