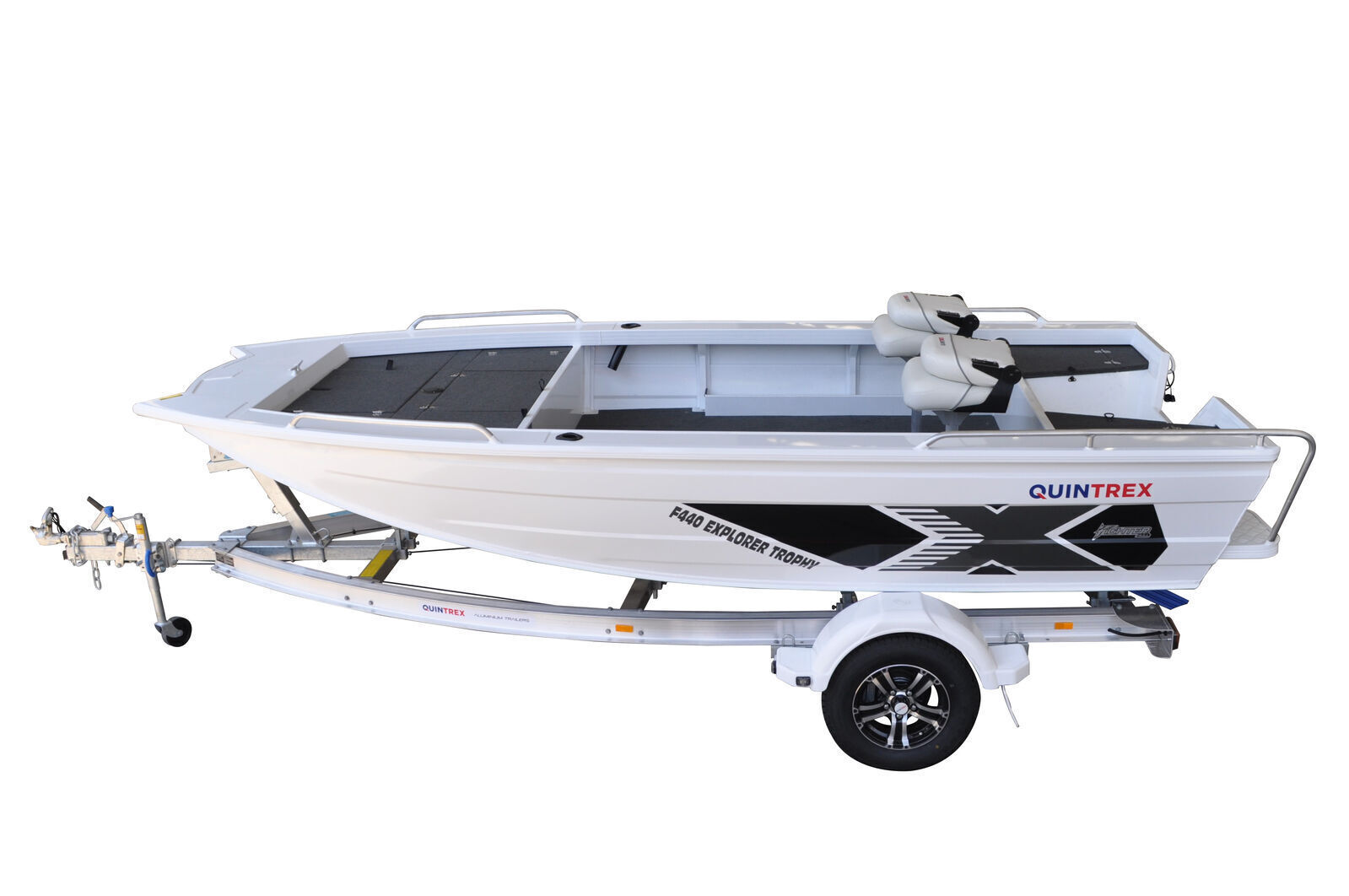

Quintrex F440 Explorer Trophy L/S & Trailer 1098 + Mercury 50hp 4S ELHPT Motor
SKU code: KIT34-440-1098-1F5141TJZ
Quintrex F440 Explorer Trophy L/S with
Move Trailers Aluminium 1098 ATM Single Axle 13" Skid Mech Braked Trailer &
Mercury Marine 50HP FourStroke Outboard
Kit Inclusions: Boat, Trailer, & Motor
Quintrex F440 Explorer Trophy - Fighter Series Hull L/S
One of the most spectacular places on earth, your backyard is worth exploring. The Quintrex range of Explorer tinnies are perfectly suited for Australia's diverse waterways, making them an ideal option for tender work, lake, river, and estuary style fishing.
The 440 Explorer Trophy features a wide chine for increased stability, and pickled fork bow for unmatched internal space. Its large raised front casting platform is perfect for fishing, while providing ample storage. Easily customisable, the Explorer Trophy range comes available with a wide range of optional extras.
Boat Features:
- Carpeted / Plywood
- Front Casting Platform
- Rod Holders (2)
- Casting Platform Rear
- Fighter Series Hull
- Handles Transom
- Side Decks Extruded
- Transducer Bracket
- Welded Gunnels and Top Decks
- Painted Hull
- Rails: Bowrails
- Rails: Side
- Seat Positions (6)
- Seats: Angler Sport
- Seats: Pedestal
Boat Options:
- Covers: Bimini & Envelope
- Casting Platform & Storage Bin
- Side Console
- Casting Platform Central Live Bait Tank
- Rear Casting Platform & LBT
- Transom Step & Rail
- Sealed Timber Floor
- Bow Mount Thruster Plate
- Deluxe Rod Locker
- Side Pockets
- Rails: Side
- Seat Pedestal
- Vinyl Wrap
Mercury Marine 50HP FourStroke Outboard - Electric Start Long Shaft
FourStroke
Make every minute count. Every spot, every tow, every cast. With innovative technologies, simple maintenance and efficient performance, Mercury fourstroke outboards were engineered to elevate every moment on the water.
The entire fourstroke outboard family features efficient, lightweight designs that ensure no power goes wasted. It is worry-free boating that is easy to own and fun to drive. With features ranging from a no-spill oil change system and easy-access fuel filter, to a valve train that remains maintenance-free for the life of your engine, Mercury fourstroke outboards are easy to maintain for lasting peak performance.
It is simple. You have places to go, and a Mercury fourstroke outboard is the easiest way to get there. Their high-displacement powerheads deliver impressive torque, speed and acceleration - with reliability you can count on. It is everything you need to get more out of your time on the water.
Held to a Higher Standard.
There are plenty of good reasons these outboards rule the water. Start with no-worry reliability. More low-end torque for excellent acceleration. Increased fuel economy and outstanding overall performance. Enhanced fuel injection (EFI models) for boosted efficiency. A robust electrical system with a high-output alternator to keep batteries charged and fishing electronics humming. They have everything you need, and nothing you don't.
FourStroke Advantages:
- Corrosion Resistance: Advanced alloys. Durable coatings. Sealed electronics. Easy-to-use freshwater flush system. Fourstroke outboards come packed with premium corrosion-preventive technology that enables them to stand up to the most demanding marine environments.
- Superior Control: With a choice of tiller or remote steering and compatibility with advanced SmartCraft® features such as Troll Control and Active Trim, you can optimise your engine for total command of all your adventures.
- Go Farther: A host of efficiency-enhancing features such as Advanced Range Optimisation (ARO), a closed-loop fuel system and a hydrodynamic gearcase optimise fuel economy so you can go farther on every tank.
- Power and Flexibility: A Mercury 250 or 300hp fourstroke outboard is the answer for fishing, cruising or all-around fun. They are ideal for powering a range of boats and come in four colour options to match your boat and style.
Features:
- High-output alternator: An 18-amp alternator helps keep batteries charged and fishing electronics humming long into the evening bite.
- Convenient maintenance: We made maintenance easier with features like colour-coded touch points, an easy-access water-separating fuel filter and an oil filter drip tray, which helps you get the job done with less mess.
- Command Thrust gearcase: Designed to sit lower in the water and turn larger props, the available Command Thrust gearcase lifts heavy boats on plane more easily and holds them there at lower speeds without impacting top speed.
- Tiller handle: With a range of adjustments, ergonomic controls and the flexibility to be set up for left or right-handed operation, the available advanced tiller puts you in complete command of your adventures.
- Electronic Fuel Injection (EFI): From the moment you crank the engine to the moment you drop the throttle, EFI technology responds with instant power. Surefire starting in all weather conditions. Smooth, efficient acceleration. Maximum fun.
Quintrex is the fishing boat of choice for Australians. Whether you are hunting snapper, barramundi, flathead, or chasing marlin offshore, our Quintrex range has a layout and length that will suit you.
Boat Specifications:
| Length Maximum | 4.55m |
| Beam | 2.05 |
| Max HP | 60hp |
| People Max | 4 |
| Boat Weight | 364kg |
| Transom Shaft Length | LS |
| Top Sides | 2mm |
| Bottom Sides | 3mm |
| Transom Material | 3.00mm |
Trailer Specifications:
| Product Type | Trailer |
| Boat Size | 4.1m - 4.7m |
| Tare Weight | 280kg |
| Aggregate Trailer Mass | 1098kg |
| Tyre | 165 |
| Gross Trailer Mass | 998kg |
| Width Between Guards | 1.8m |
| Springs | 6 |
| Length Overall | 5.3m |
| Width Overall | 2.28m |
| Wheel | 13" |
| Trailer Brakes | Mechanical |
Motor Specifications:
| Horse power | 50 |
| Shaft Length (Inches) | 20 |
| Cylinders / Displacement | 4 cyl / 995cc |
| Steering (Tiller or Remote) | Tiller - Troll control std |
| Starting (Manual / Electric) | Electric |
| Fuel Tank | - |
| Standard (STD) Recommended Propeller | Aluminium |
| Alternator amp / watt | 17 amp / 210 Watts |
| Colour | Black |
| Compatible with SmartCraft digital technology | Yes |
| Displacement (L) | 1.0L |
| Dry weight *lightest model available | 247 lbs / 112 kg |
| Engine type | I- 4 |
| HP / kW | 50 / 37 |
| Recommended fuel | Regular Unleaded (91 RON) |
| SKU | KIT34-440-1098-1F5141TJZ |
| Brand | Quintrex |
