Stacer 589 Plate Sea Ranger Centre Console SDF XLS Boat,
Move Trailers 1999 ATM Tandem Axle 13" Mech Braked Trailer &
Mercury Marine 150HP FourStroke Outboard

Kit Inclusions: Boat, Trailer, & Motor

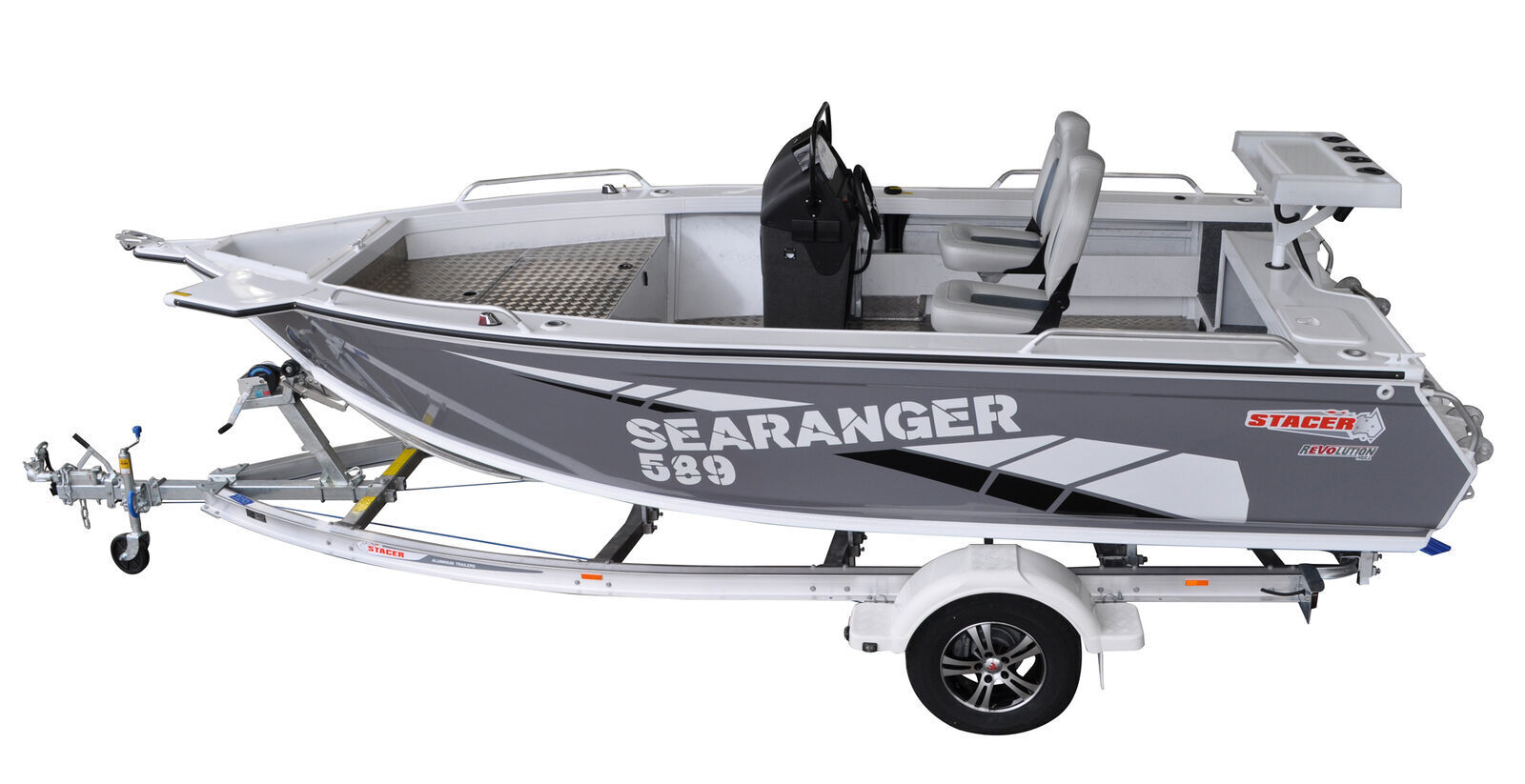

Stacer 589 Plate Sea Ranger Centre Console SDF XLS

Stacer's Plate boat range is hot off the production line and is built to be the perfect companion for the offshore fisherman. The plate range features a massive 20 models in a selection of side and centre consoles, cabin and hard top designs. With all the features that matter most to the bluewater fisherman, Stacer's plate range offers the perfect package!

589 Sea Ranger CC

This model comes with a long list of standard features including tough 5mm bottom sheets, 126L fuel tank, burley bucket, a grab rail on the console and an alloy live well with glass. The 589 Sea Ranger fits five people comfortably and is sure to turn heads.

Boat Features

  • 12 Volt Power Outlet
  • Anchorwell
  • Bowroller
  • Burley Bucket
  • Cast Welded Rod Holders (6)
  • Cross Bollard
  • Live Bait Tank Alloy & Glass Back Deck
  • Marine Radio
  • Rear Ladder
  • Twin Battery Box & Switch
  • Self Drain Treadplate Floor
  • Evo Advance Hull
  • Fully Weld Gunnels & Side Decks
  • Side Pockets
  • Transducer Brackets x 2
  • Welded Gunnels and Top Decks
  • Painted Hull
  • Rails: Bowrails
  • Rails: Side
  • Rails: Transom
  • Transom Door

Boat Options

  • Covers: Bimini & Envelope
  • High Bimini (6ft)
  • Cigarette Lighter Outlet
  • Deck Wash
  • Drum Winch
  • Savwinch 1000SS
  • Savwinch Electronic Free Fall
  • Bow Mount Thruster Plate
  • Deluxe Rod Locker
  • Dive Ladder
  • Trim Tabs
  • Seats: Large Strike Chair
  • Seats: Strike Chair & 85L Ice Box
  • Vinyl Wrap

Move Trailers Aluminium 1999 ATM Tandem Axle 13" Roller Mechanical Braked Trailer - TAP1999T13RB

You want a strong trailer supporting your pride and joy and this aluminium frame offers the best with a swing jockey wheel as standard and multi-roller set-up for easy retrievals.

Trailer Features:

  • 13 Inch Alloy Wheels
  • 13 Inch Tyres
  • 4 Alloy Cross Members
  • 50mm Coupling Braked (2Tonne)
  • 7 Pin Plug
  • Axle 45 Square
  • Clearance Lights
  • Disc Brakes
  • Draw Bar
  • Jockey Wheel Swing Up
  • LED Lights
  • Rolled Frame Alloy I-Beam
  • Winch 5:1
  • Wobble Roller

Trailer Options

  • Motor Support
  • Spare Wheel & Carrier

Mercury Marine 150HP FourStroke Outboard - Electric Start Extra Long Shaft
Available in Black or Cold Fusion White

FourStroke
Make every minute count. Every spot, every tow, every cast. With innovative technologies, simple maintenance and efficient performance, Mercury fourstroke outboards were engineered to elevate every moment on the water.

The entire fourstroke outboard family features efficient, lightweight designs that ensure no power goes wasted. It is worry-free boating that is easy to own and fun to drive. With features ranging from a no-spill oil change system and easy-access fuel filter, to a valve train that remains maintenance-free for the life of your engine, Mercury fourstroke outboards are easy to maintain for lasting peak performance.

It is simple. You have places to go, and a Mercury fourstroke outboard is the easiest way to get there. Their high-displacement powerheads deliver impressive torque, speed and acceleration - with reliability you can count on. It is everything you need to get more out of your time on the water.

Embrace Possibility.
Mercury FourStroke outboard motors are incredibly powerful and efficient, and they feature a wide range of applications. Crafted for less weight and high displacement, they generate abundant torque and immediate power. And because they don’t have to work as hard as heavier engines or those with lower displacement, they make boats plane faster and accelerate better, and they provide optimal fuel efficiency at cruising speed.

FourStroke Advantages:

  1. Corrosion Resistance: Advanced alloys. Durable coatings. Sealed electronics. Easy-to-use freshwater flush system. Fourstroke outboards come packed with premium corrosion-preventive technology that enables them to stand up to the most demanding marine environments.
  2. Superior Control: With a choice of tiller or remote steering and compatibility with advanced SmartCraft® features such as Troll Control and Active Trim, you can optimise your engine for total command of all your adventures.
  3. Go Farther: A host of efficiency-enhancing features such as Advanced Range Optimisation (ARO), a closed-loop fuel system and a hydrodynamic gearcase optimise fuel economy so you can go farther on every tank.
  4. Power and Flexibility: A Mercury 250 or 300hp fourstroke outboard is the answer for fishing, cruising or all-around fun. They are ideal for powering a range of boats and come in four colour options to match your boat and style.

Motor Features:

  • High-output alternator: A powerful alternator - 60 amps on the 150hp outboard and 35 amps on 75 to 115hp outboards – helps keep batteries charged and your onboard electronics running all day.
  • Extra charging power: Idle charge battery-management technology on the 150hp engine automatically increases idle rpm to boost alternator output and recharge low batteries.
  • Command Thrust gearcase: Available for the 90 and 115hp outboards, the Command Thrust gearcase is designed to turn larger props. It helps get heavy boats on plane more easily and hold them there at lower speeds without impacting the top speed.
  • Tiller handle: With a range of adjustments and ergonomic controls, the available advanced tiller for 90 to 115hp models or Big Tiller for the 150hp engine puts you in complete command of your adventures.
  • Electronic Fuel Injection (EFI): From the moment you crank the engine to the moment you drop the throttle, EFI technology responds with instant power. Surefire starting in all weather conditions. Smooth, efficient acceleration. Maximum capability.

After 50 years in the industry, Stacer boats has established a solid reputation for inherent reliability and longevity. Whether you're an angler, a first-time boat buyer, or an experienced fisherman, we want you to enjoy all the benefits of a product built to go the distance.

Boat Specifications:

Length Maximum 5.98m
Beam 2.4
Max HP 150hp
People Max 6
Boat Weight 990kg
Transom Shaft Length XLS
Top Sides 4mm
Bottom Sides 5mm
Transom Material 5.00mm


Trailer Specifications:

Product TypeTrailer
Boat Size
Tare Weight480kg
Aggregate Trailer Mass1999kg
Tyre165
Gross Trailer Mass1820kg
Width Between Guards1.8m
Springs6
Length Overall6.3m
Width Overall2.28m
Wheel13"
Trailer BrakesOveride


Motor Specifications:

Horse power 150
Shaft Length (Inches) 25
Cylinders / Displacement 4 cyl / 3000cc
Steering (Tiller or Remote) Remote
Starting (Manual / Electric) Electric
Fuel Tank -
Standard (STD) Recommended Propeller Enertia
Alternator amp / watt 17 amp / 210 Watts
Colour Black / Cold Fusion White
Compatible with SmartCraft digital technology Yes
Displacement (L) 3.0L
Dry weight *lightest model available 455 lbs / 206 kg
Engine type 8-valve single overhead cam (SOHC)
HP / kW 150 / 110
Recommended fuel Regular Unleaded (91 RON)

SKU KIT172-589-1999-1150F23ED
Brand Stacer
