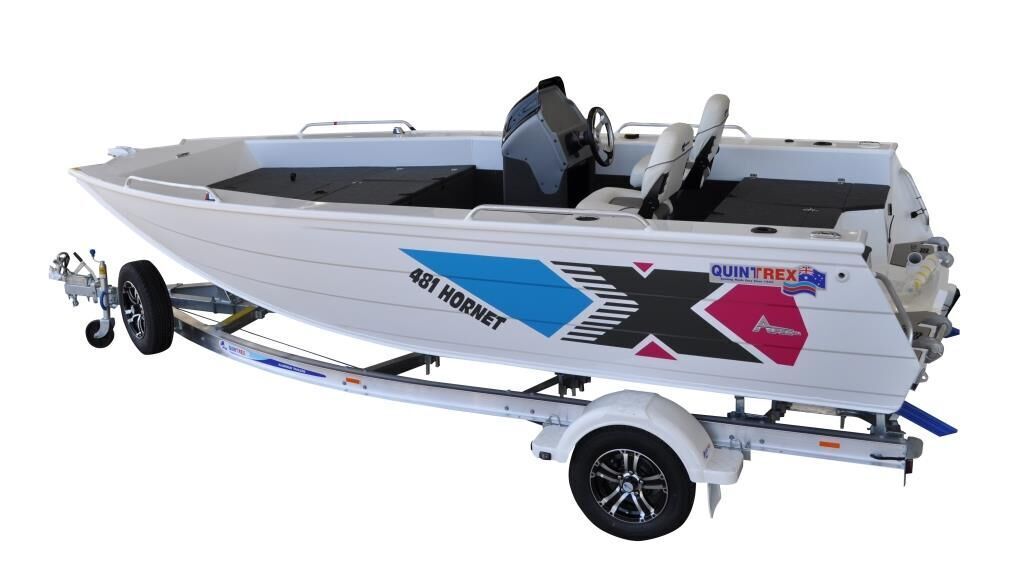

Quintrex 481 Hornet & Trailer 1100 + Mercury 90hp 4S ELPT Motor
SKU code: KIT40-481-1100-1F904132D
Quintrex 481 Hornet with
Move Trailers Aluminium 1100 ATM Single Axle 13" Skid Mech Braked Trailer &
Mercury Marine 90HP FourStroke Outboard
Kit Inclusions: Boat, Trailer, & Motor
Quintrex 481 Hornet SC - Side Console L/S
Renowned as the ultimate fishing boat, the now all-new Hornet Range is stocked with the essential fishing features. The Hornet range offers a smooth and steady ride in all conditions with the help of the Eclipse V-Flared Hull, while providing a stable platform to fish from when at rest.
Featuring the innovative Apex Hull, the Hornet range is crafted for fishing diverse waterways. Its flared bottom sheet delivers unmatched ride performance and stability at rest, whilst the widened bow delivers unparalleled internal real-estate for casting a line and chasing game fish.
Boat Features:
- Casting Platform Rear Live Bait Tank
- Front Casting Platform
- Helm: Side Console & Mechanical Tilt Steering
- Anchorwell
- Folding Cleat
- Glove Box
- Maxi Bracket
- Rear Ladder
- Rod Holders (2)
- Transom Pads
- Bow Mount Thruster Plate
- Fully Weld Gunnels & Side Decks
- Side Decks Folded
- Side Pockets
- Transducer Brackets x 2
- Painted Hull
- Rails: Side
- Side Rails
- Seat Positions (4)
- Seats: Pedestal
- Helm: Mechanical Tilt Steering
Boat Options:
- Quintrex Fish Bag 100cm
- Quintrex Fish Bag 150cm
- Covers: Bimini & Envelope
- Burley Bucket
- Casting Platform Central Live Bait Tank
- Cockpit Lights (2)
- Drink Holder Cups
- Marine Radio
- Sound System & Speakers
- Twin Battery Box & Switch
- Deluxe Rod Locker
- Quintrex Hornet Captain's Bundle
- Quintrex Hornet Fishing Bundle
- Rails: Console Grabrail
- Seat Pedestal
- Seats: Angler Sport
- Seats: Bass Sport
- Seats: Lean Seat
- Helm: Hydraulic Steering
- Vinyl Wrap
Mercury Marine 90HP FourStroke Outboard - Electric Start Long Shaft
FourStroke
Make every minute count. Every spot, every tow, every cast. With innovative technologies, simple maintenance and efficient performance, Mercury fourstroke outboards were engineered to elevate every moment on the water.
The entire fourstroke outboard family features efficient, lightweight designs that ensure no power goes wasted. It is worry-free boating that is easy to own and fun to drive. With features ranging from a no-spill oil change system and easy-access fuel filter, to a valve train that remains maintenance-free for the life of your engine, Mercury fourstroke outboards are easy to maintain for lasting peak performance.
It is simple. You have places to go, and a Mercury fourstroke outboard is the easiest way to get there. Their high-displacement powerheads deliver impressive torque, speed and acceleration - with reliability you can count on. It is everything you need to get more out of your time on the water.
Embrace Possibility.
Mercury FourStroke outboard motors are incredibly powerful and efficient, and they feature a wide range of applications. Crafted for less weight and high displacement, they generate abundant torque and immediate power. And because they dont have to work as hard as heavier engines or those with lower displacement, they make boats plane faster and accelerate better, and they provide optimal fuel efficiency at cruising speed.
FourStroke Advantages:
- Corrosion Resistance: Advanced alloys. Durable coatings. Sealed electronics. Easy-to-use freshwater flush system. Fourstroke outboards come packed with premium corrosion-preventive technology that enables them to stand up to the most demanding marine environments.
- Superior Control: With a choice of tiller or remote steering and compatibility with advanced SmartCraft® features such as Troll Control and Active Trim, you can optimise your engine for total command of all your adventures.
- Go Farther: A host of efficiency-enhancing features such as Advanced Range Optimisation (ARO), a closed-loop fuel system and a hydrodynamic gearcase optimise fuel economy so you can go farther on every tank.
- Power and Flexibility: A Mercury 250 or 300hp fourstroke outboard is the answer for fishing, cruising or all-around fun. They are ideal for powering a range of boats and come in four colour options to match your boat and style.
Features:
- High-output alternator: A powerful alternator - 60 amps on the 150hp outboard and 35 amps on 75 to 115hp outboards helps keep batteries charged and your onboard electronics running all day.
- Extra charging power: Idle charge battery-management technology on the 150hp engine automatically increases idle rpm to boost alternator output and recharge low batteries.
- Command Thrust gearcase: Available for the 90 and 115hp outboards, the Command Thrust gearcase is designed to turn larger props. It helps get heavy boats on plane more easily and hold them there at lower speeds without impacting the top speed.
- Tiller handle: With a range of adjustments and ergonomic controls, the available advanced tiller for 90 to 115hp models or Big Tiller for the 150hp engine puts you in complete command of your adventures.
- Electronic Fuel Injection (EFI): From the moment you crank the engine to the moment you drop the throttle, EFI technology responds with instant power. Surefire starting in all weather conditions. Smooth, efficient acceleration. Maximum capability.
Quintrex is the fishing boat of choice for Australians. Whether you are hunting snapper, barramundi, flathead, or chasing marlin offshore, our Quintrex range has a layout and length that will suit you.
Boat Specifications:
| Length Maximum | 5.1m |
| Beam | 2.3 |
| Max HP | 115hp |
| People Max | 5 |
| Boat Weight | 535kg |
| Transom Shaft Length | LS |
| Top Sides | 3mm |
| Bottom Sides | 4mm |
| Transom Material | 4mm |
Trailer Specifications:
| Product Type | Trailer |
| Boat Size | 4.3m - 4.7m |
| Tare Weight | 295kg |
| Aggregate Trailer Mass | 1100kg |
| Tyre | 165 |
| Gross Trailer Mass | 1000kg |
| Width Between Guards | 1.8m |
| Springs | 6 |
| Length Overall | 5.7m |
| Width Overall | 2.25m |
| Wheel | 13" |
| Trailer Brakes | Override |
Motor Specifications:
| Horse power | 90 |
| Shaft Length (Inches) | 20 |
| Cylinders / Displacement | 4 cyl / 2061cc |
| Steering (Tiller or Remote) | Remote |
| Starting (Manual / Electric) | Electric |
| Fuel Tank | - |
| Standard (STD) Recommended Propeller | Aluminium |
| Alternator amp / watt | 17 amp / 210 Watts |
| Colour | Black |
| Compatible with SmartCraft digital technology | Yes |
| Displacement (L) | 2.1L |
| Dry weight *lightest model available | 359 lbs / 163 kg; 363 lbs / 165 kg (CT model) |
| Engine type | 8-valve single overhead cam (SOHC) |
| HP / kW | 90 / 67 |
| Recommended fuel | Regular Unleaded (91 RON) |
| SKU | KIT40-481-1100-1F904132D |
| Brand | Quintrex |
