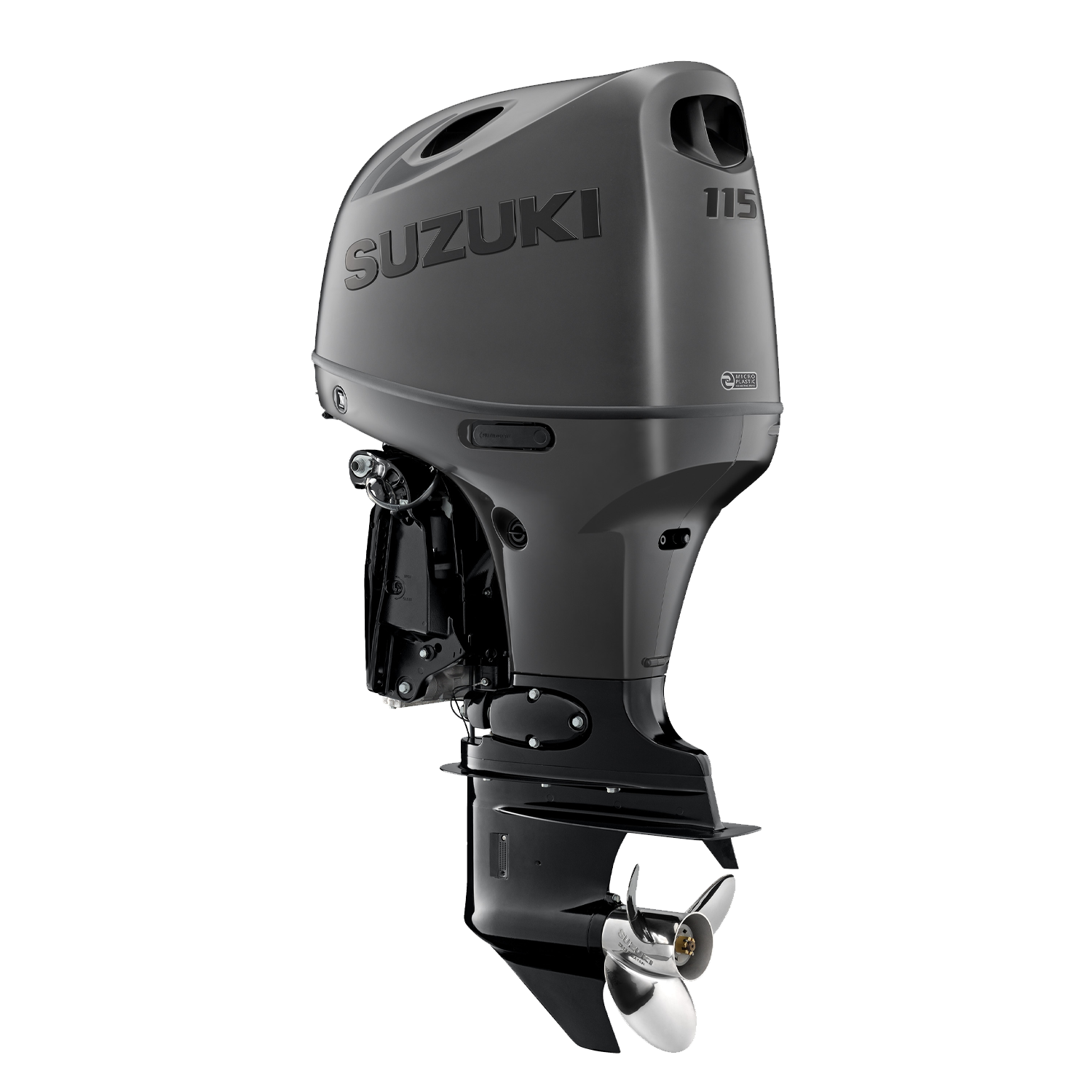

Suzuki DF115BG Stealth Outboard

Available Now
Quiet in nature but strong in performance. The new DF115BG Stealth now has an appearance that reflects the legendary Suzuki standard. This fuel injected four-stroke delivers a powerful hole shot, a strong mid-range punch and an exhilarating top end. With the Suzuki Lean Burn System and increased fuel economy, this motor works with any budget. If you're looking for power in a compact package, look no further.

STEALTH LINE
Suzuki Marine's new Stealth Line now offer more of the innovative technology and uncompromising power with sleek new matte black style.

Suzuki Micro Plastic Collecting Device (MPC)
Suzuki's Micro-Plastic Collecting Device (MPC) is part of Suzuki's Clean Ocean Project initiative, which collects micro-plastic by filtering the returning ocean water after it has been used for cooling the outboard motor., without any effect on performance when boating.

Quiet Operation
Suzuki four-stroke outboards have long been noted for their exceptionally quiet operation. Suzuki engineers go to great lengths incorporating methods designed to keep outboard operation as quiet as possible. In a noise comparison test between the DF200A and a competing 200HP in-line four-stroke outboard, the results clearly show that the DF200A runs quieter than its competitor.

3 + 3 years Recreational Warranty
All recreational/privately registered Suzuki Outboards come standard with 3-years / unlimited hours manufacturer's warranty. Recreational outboards are also eligible for a bonus 3-year Warranty providing that an authorised Suzuki Marine Dealership completes servicing as per the owners manual schedule. The Suzuki dealer must use only genuine parts and oils during both manufacturer's and bonus warranty periods.

Easy Maintenance
Specially designed to be easy for owners to perform maintenance tasks.

ADVANTAGES

• Easy access oil filter: Can be replaced simply by removing the top cover.
• Oil Spill Catcher: A tray is added around the oil filter to catch oil which comes out when exchanging the oil filter
• Oil Level Gauge: Able to use ?15 oil changer hose

Newly Designed Air Intake System
The air intake structure was reviewed and improved.

ADVANTAGE

• Delivers higher power output.
• Increased ability to remove water from air taken into cowl.
• Decrease in the air intake temperature.

Direct Ignition
Integrates the ignition coils into the spark plug caps.

ADVANTAGES

• Reduces the number of parts and simplifies the wiring system.
• Removing the high tension cord enables the ignition to generate spark efficiently which leads to the improvement of combustion efficiency.

Water Detecting System

• It helps to protect the engine from water in the fuel.
• Using bigger fuel filter than the DF140A/115A.
• Optimised Fuel Filter position.

ADVANTAGE

• Can avoid water in fuel.
• Increased Durability & Reliability.
• Easy replacement of fuel filter.

More Features to contribute to Durability

• Large capacity Fuel Pump: Capable to rig on various kinds of boats
• Optimized O? Sensor mounting position: Increased Durability
• Using Zinc-containing Rustproof Coating bolt: Increased Durability

Lean Burn Control System
The Lean Burn Control System supplies the optimal amount of fuel and air mixture depending on the navigation conditions.

ADVANTAGE

• Significant improvement in fuel economy in all speed ranges especially at cruising speed.
• Fuel is saved and petrol costs are greatly reduced thanks to the improved fuel economy.

Offset Drive Shaft
The engine powerhead is positioned closer to the front, moving the outboard's centre of gravity forward.

ADVANTAGE

• Less vibration.
• More compact.
• Stable steering performance.

2-Stage Gear Reduction
This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft, and a second stage reduction inside the gear case.

ADVANTAGES

• High Torque even with big loads.
• Powerful enough to rotate a larger propeller

Increased Alternator Output
Newly designed ventilation which improves cooling around the coils.

ADVANTAGE: 3Amp higher alternator output at idle speed range that is roughly equivalent to the necessary output required to operate the SMD12/SMD16 displays.

Improved Gear Case
By optimising the gear oil passage, the spinning pinion gear generates negative pressure and it helps gear oil circulation.

ADVANTAGE: It lowers gear oil temperature and contributes to the increased durability of pinion gear

Self-Adjusting Timing Chain
The timing chain runs in an oil-bath, so it never needs lubricating, and is equipped with an automatic hydraulic tensioner, so it remains properly adjusted at all times. Simple, effective and maintenance-free.

Suzuki Water Detecting System
Water in the fuel can be the source of poor combustion, lower power output, and corrosion. To help protect the engine from moisture in the fuel, a water detecting fuel filter is fitted to alert the operator with both visual and audio warnings when water is present in the fuel.

Tilt Limit System
To protect the boat and motor from damage that can occur when tilting the motor, both outboards incorporate a user adjustable tilt limit switch that prevents the outboard from tilting beyond a predetermined point.

Suzuki Keyless Start System
Suzuki's Keyless Start system utilises a proximity key fob that transmits an access code to the engine's starting system. As long as you have the key fob on your person, all you need to do is stand within one meter of the console, connect the emergency switch code, turn on the main switch, then start the outboard with a push of a button. With the key remaining safely in your pocket, the system offers simple, stress-free operation while reducing the risk of a lost key. The system also makes for an excellent theft deterrent since the outboard will not start without the proper access code. The key fob also floats so should it ever go overboard you can retrieve it.

Suzuki Anti Corrosion Finish
Suzuki's Anti Corrosion Finish is specially formulated to increase the durability of the engine and help protect parts of the outboard's aluminium exterior. This advanced finish is designed for maximum bonding of the finish to the outboard's aluminium surface, creating an effective treatment against corrosion.

Features:

• Shaft length: Available in 25" & 20"
• Colour: Pearl Nebular Black
• Electric starting system: Simply turn the key and release, and the starter stays engaged until the engine starts. (Keyless start system option is available on selected models)
• Power Trim and Tilt: With the push of a switch, change the outboard's thrust angle, or tilt the outboard up or down
• Regular rotation propeller: The outboard propeller operates in clockwise rotation, meaning to the right

Specifications:
