Suzuki DF9.9A Outboard - Manual Start & Tilt Short Shaft [Shaft Length (inches): 15]
SKU code: SDF9-9AS

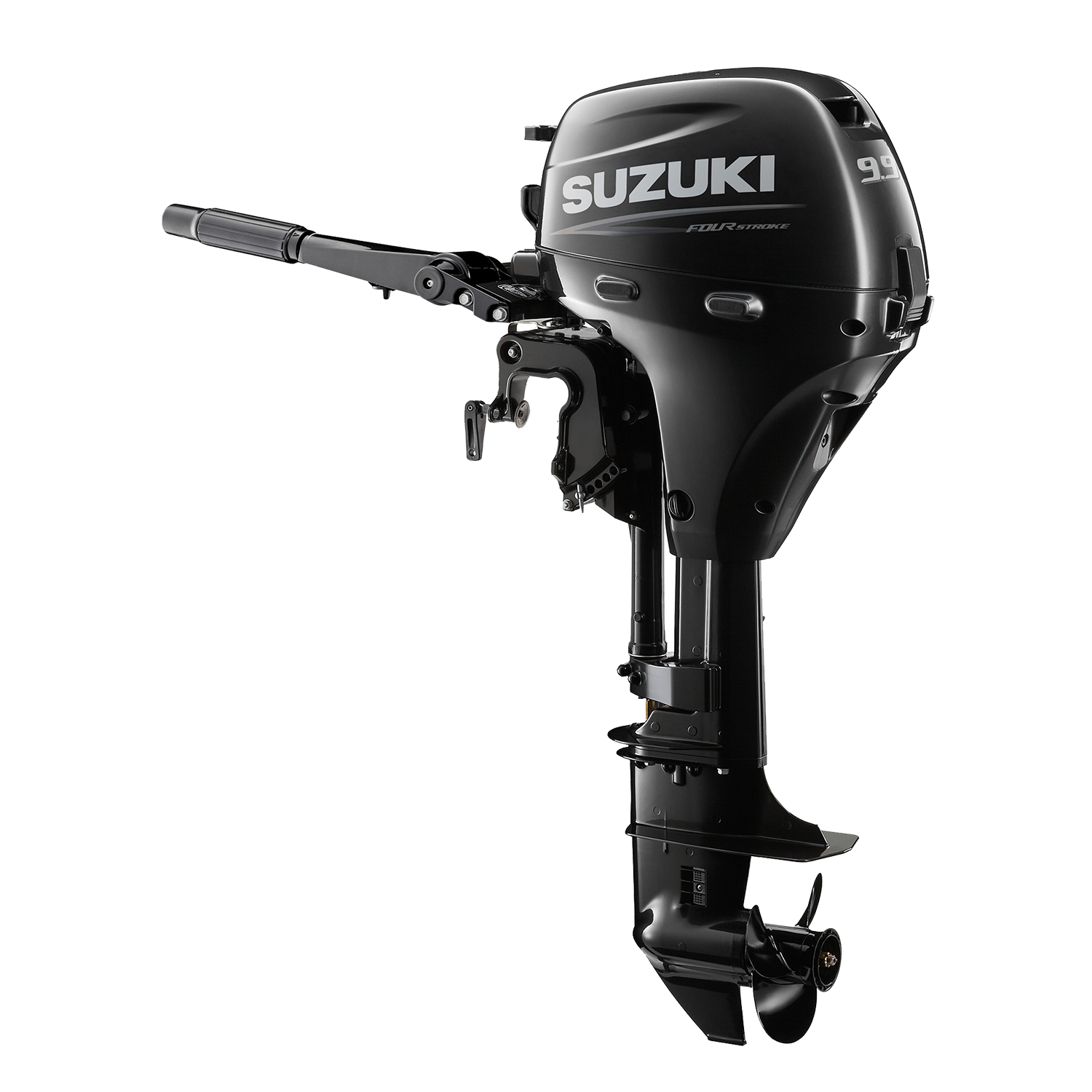

Suzuki DF9.9A Outboard
Lightweight. Compact. Portable
A new generation of small outboard designed with features that offer greater ease of use, better portability and more economical operation.
Light Weight & Compact Design
Suzuki engineers have succeeded in making these new outboards as compact and lightweight as possible. Comparing profiles it is obvious that the new range is more compact than the original they replace. What's more is that the new design weighs 4.5kg less than its predecessor. Less weight and more compact designs make an outboard that is easier to carry and transport.
3 + 3 years Recreational Warranty
All recreational/privately registered Suzuki Outboards come standard with 3-years / unlimited hours manufacturer's warranty. Recreational outboards are also eligible for a bonus 3-year Warranty providing that an authorised Suzuki Marine Dealership completes servicing as per the owners manual schedule. The Suzuki dealer must use only genuine parts and oils during both manufacturer's and bonus warranty periods.
Easy Start Recoil Starter
These outboards are equipped with starters specially designed with very light recoil loads. Combining the easy to pull starter with fuel injection makes starts exceptionally easy for almost everyone.
Suzuki's Anti Corrosion System
Suzuki protects the outboard's exterior from harmful corrosion with its own specially formulated anti-corrosion finish. Applying the finish directly to the outboard's aluminium surface, allows maximum bonding of the finish to the surface to increase durability and help protect parts that are constantly exposed to saltwater.
Fuel Efficiency
Suzuki four-strokes are known for their fuel efficient operation, and the new DF8A and DF9.9A are no exception. Greater fuel efficiency enables these new outboards to go further for less.
Features:
- Available in 15" & 20" shaft length
- Colour: Black
- Manual starting system: Pull the cord handle to manually to start the engine
- Manual Trim & Tilt: A mechanical system which allows the outboard engine to be tilted to 5 or 3 respectively different angles with respect to the transom
- Regular rotation propeller: The outboard propeller operates in clockwise rotation, meaning to the right
Specifications:
| Recommended Transom Height | S: 381mm, L: 508mm |
| Weight | S: 39kg, L: 41.5kg |
| Valve Train | OHC |
| Displacement | 208cm³ |
| Maximum Output | 7.3kW |
| Control System | Mechanical |
| Recommended Fuel | Ron 91/ AKI 89 |
| Alternator | 12V 6A |
| Gear Ratio | 2.08 : 1 |
| Exhaust | Through Prop Hub Exhaust |
| Starting system | Manual |
| Engine Type | In-line 2 cylinder, 4-stroke |
| Fuel Delivery System | Carburetor |
| Bore X Stroke | 51 x 51mm |
| Full Throttle Operating Range | 5,200 - 6,200rpm |
| Oil Pan Capacity | 0.8L |
| Fuel Tank Capacity | Separate 12L (optional) |
| Trim Method | Manual Trim and Tilt |
| Gear Shift | F-N-R |
| Propeller Selection (Pitch) | 7" - 11" |
| SKU | SDF9-9A |
| Brand | Suzuki Marine |
